Acer Aspire 4930 Notebook Technical Specifications

Acer Aspire 4930 Notebook Technical Specifications

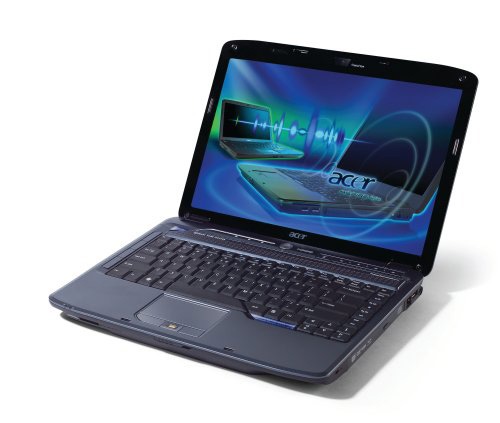

acer aspire 4930 Notebook Promising richer multimedia entertainment experiences, the Aspire 4930 flaunts 14.1" Acer CrystalBrite™ display, thrilling Dolby®-optimized surround sound with 5.1-channel output, and pure high-def HDMI™ connectivity. The new Intel® Centrino® 2 mobile platform, featuring the latest Intel® Core™2 Duo processor and integrated Wi-Fi® functionality, delivers a feast of full sensory digital enjoyment on the road or at home.

The Aspire 4930 offers the following features and benefits:
Digital-life delight, Building on the aesthetics of the original Aspire Gemstone design, this year's Gemstone-M notebooks are uniquely cool, made to enrich digital life with ease, excitement and individuality. The LCD cover is shaped with gradual curves, while the dark sub-layer sparkles with subtle intensity. These attractive design elements suggest the soft contour and fiery heart of a finely cut opal. The smooth, opalesque curvature of the whole notebook provides a very comfortable touch.

Acer Aspire 4930 Notebook Technical Specifications:

Processor Intel® Centrino® processor technology, featuring:
Intel® Core®2 Duo processor T5800 (2 MB L2 cache, 2.00 GHz, 800 MHz FSB, supporting Intel® 64 architecture
Mobile Intel® GM45 Express Chipset
Intel Wireless WiFi Link 5100 (dual-band quad-mode 802.11a/b/g/Draft-N) Wi-Fi CERTIFIED network connection, featuring MIMO technology, supporting Acer SignalUp with Nplify2, 3 wireless technology
Operating System Linux
VGA 14.1" WXGA high-brightness (200-nit) Acer CrystalBrite™ TFT LCD, 1280 x 800 pixel resolution, supporting simultaneous multi-window viewing via Acer GridVista™
16 ms response time
Memory Dual-channel DDR2 SDRAM support
2 GB of DDR2 667 MHz memory, upgradeable to 4 GB using two soDIMM modules7
Graphics Mobile Intel® GM45 Express Chipset with integrated 3D graphics, featuring Intel® Graphics Media Accelerator 4500MHD (Intel® GMA 4500MHD) with up to 1759 MB of Intel® Dynamic Video Memory Technology 5.0 (64 MB of dedicated video memory, up to 1695 MB of shared system memory), supporting Microsoft® DirectX® 10
Dual independent display support
16.7 million colors
External resolution/refresh rate:
2048 x 1536: 60 Hz
1920 x 1440: 75/60 Hz
1856 x 1392: 75/60 Hz
1792 x 1344: 75/60 Hz
1600 x 1200: 100/85/75/60 Hz
1600 x 900: 60 Hz
1400 x 1050: 60 Hz
1280 x 1024: 120/100/85/75/60 Hz
1280 x 960: 85/60 Hz
1280 x 768: 60 Hz
1152 x 864: 100/85/75 Hz
1024 x 768: 120/100/85/75/70/60 Hz
800 x 600: 120/100/85/75/60 Hz
640 x 480: 120/100/85/75/60 Hz
MPEG-2/DVD acceleration
WMV9 (VC-1) acceleration
HDMI™ (High-Definition Multimedia Interface) with HDCP (High-bandwidth Digital Content Protection) support
Acer Arcade™ Deluxe featuring Acer CinemaVision™ and Acer ClearVision™ technologies8
Audio Dolby®9-optimized surround sound system with two built-in stereo speakers
Optimized 2nd Generation Dolby Home Theater®9 audio enhancement, featuring Dolby® Digital, Dolby® Digital Live, Dolby® Pro Logic® IIx, Dolby® Headphone, Dolby® Natural Bass, Dolby® Sound Space Expander technologies10
True5.1-channel surround sound output
High-definition audio support
S/PDIF (Sony/Philips Digital Interface)11 support for digital speakers
MS-Sound compatible
Acer PureZone technology with two built-in stereo microphones, featuring beam forming, echo cancellation, and noise suppression technologies
Storage One 160 GB hard disk drive12
5-in-1 card reader, supporting Secure Digital™ (SD), MultiMediaCard (MMC), Memory Stick® (MS), Memory Stick PRO™ (MS PRO), xD-Picture Card™ (xD)
Optical Disk Drive 8X DVD-Super Multi double-layer drive:
Read: 24X CD-ROM, 24X CD-R, 24X CD-RW, 8X DVD-ROM, 8X DVD-R, 8X DVD+R, 6X DVD-ROM DL (double-layer), 6X DVD-R DL (double-layer), 6X DVD+R DL (double-layer), 6X DVD-RW, 6X DVD+RW, 5X DVD-RAM
Write: 24X CD-R, 16X CD-RW, 8X DVD-R, 8X DVD+R, 4X DVD-R DL (double-layer), 4X DVD+R DL (double-layer), 6X DVD-RW, 8X DVD+RW, 5X DVD-RAM
Communication Acer Video Conference, featuring:
Integrated Acer Crystal Eye high-def webcam, supporting enhanced Acer PrimaLite™ technology
Acer Video Conference Manager software, featuring Video Quality Enhancement (VQE) technology with H.264 video compression, supporting 640 x 480 resolution online video calls with drag-and-drop Picture-in-Picture (PIP) interactivity13
Acer PureZone technology
Optional Acer Xpress VoIP phone
WLAN1, 3: Intel® Wireless WiFi Link 5100 (dual-band quad-mode 802.11a/b/g/Draft-N) Wi-Fi CERTIFIED network connection supporting Acer SignalUp™ with Nplify™2 wireless technology
WPAN: Bluetooth® 2.0+EDR (Enhanced Data Rate)
LAN: Gigabit Ethernet, Wake-on-LAN ready
Modem: 56K ITU V.92 with PTT approval14, Wake-on-Ring ready
Dimensions and weight 340.4 (W) x 247 (D) x 22.9/42.3 (H) mm (13.4 x 9.7 x 0.9/1.6 inches)
2.43 kg (5.36 lbs.) with 6-cell battery
Power Supply ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes
48.8 W 4400 mAh 6-cell Li-ion battery pack:
Upto 3.0-hour battery life15
2.5-hour rapid charge system-off, 3.5-hour charge-in-use
3-pin 65 W AC adapter
ENERGY STAR® 4.0
I/O Ports Acer EasyPort IV connector
ExpressCard™/54 slot
5-in-1 card reader (SD™, MMC, MS, MS PRO, xD)
Three USB 2.0 ports
HDMI™ port with HDCP support
Consumer infrared (CIR) port
External display (VGA) port
Headphone/speaker/line-out jack with S/PDIF support
Microphone-in jack
Line-in jack
Ethernet (RJ-45) port
Modem (RJ-11) port
DC-in jack for AC adapter
Keyboard 88-/89-/93-key keyboard1 with inverted "T" cursor layout, 2.5 mm (minimum) key travel
12 function keys, four cursor keys, two Windows® keys, hotkey controls, embedded numeric keypad, international language support, independent US dollar and Euro symbol keys
Empowering Key
Easy-launch buttons: WLAN, Internet, email, Bluetooth®, Acer Arcade™
Acer MediaTouch keys: play/pause, stop, previous, next
Volume wheel
Acer Media Center remote control1
Software Acer Empowering Technology (Acer eAudio, ePower, eDataSecurity1, eRecovery, eSettings Management)
Acer Arcade™ Deluxe1 featuring Cinema, Album, Music, HomeMedia
Acer InstantOn Arcade
Acer Crystal Eye1
Acer GridVista™
Acer Launch Manager
Acer GameZone1
Acer Video Conference Manager, featuring Video Quality Enhancement (VQE)1, 13
Adobe® Reader®
McAfee® Internet Security Suite
NTI Media Maker™
Microsoft® Works 8.5 with Office Home and Student 2007 Trial
Security and service features BIOS user, supervisor, HDD passwords
Kensington lock slot
Options and Items Acer EasyPort IV
Acer Xpress VoIP phone and Acer Video Conference Manager pack
Acer Media Center remote control
512 MB/1 GB/2 GB DDR2 667 MHz soDIMM module
8-cell Li-ion battery pack
3-pin 90 W AC adapter
External USB floppy disk drive
Warranty One-year International Travelers Warranty (ITW)
Note Acer recommends Windows Vista® Home Premium.
1.Specifications vary depending on model.
2.Acer Nplify™, a high-throughput wireless solution, delivers superior performance and reliable connections while enabling emerging voice, video and data applications. Wi-Fi CERTIFIED®, it supports Acer SignalUp™ wireless technology and is compliant with 802.11a/b/g/Draft-N and 802.11b/g standards.
3.Actual throughput may vary depending on network conditions and environmental factors such as network traffic or overhead, building construction and access point settings.
4.Subject to availability.
5.Up to 1 GB of available system memory may be allocated for system resource requirements.
6.Shared system memory may be allocated to support integrated graphics, depending on system memory size and other factors. Actual system memory available to the operating system will be reduced by the amount of dedicated and shared system memory utilized by the graphics solution and resources required by the operating environment.
7.A 64-bit operating system is required to enjoy the ultimate performance of 4 GB memory.
8.Powered by CyberLink® technology.
9.Dolby® is a registered trademark of Dolby® Laboratories. Dolby Home Theater® is a trademark of Dolby® Laboratories.
10.Dolby® Pro Logic® and the double-D symbol are registered trademarks of Dolby® Laboratories.
11.Supports 7.1-channel surround sound and 2-channel stereo output (multiple streaming).
12.1 GB is 1 billion bytes. Actual formatted capacity is less and may vary depending on preloaded materials and the operating environment. Acer eRecovery Management utilizes up to 10 GB of the stated hard disk capacity as dedicated backup space.
13.Two VQE-enabled Acer notebooks with dual-core processors are required to enjoy the exclusive benefits and added performance of VQE.
14.PTT countries: Asia: China, Hong Kong, Japan, Korea, Malaysia, Singapore, Taiwan. Europe: Austria, Belgium, Denmark, Finland, France, Germany, Greece, Holland, Iceland, Italy, Luxembourg, Norway, Portugal, Spain, Sweden, Switzerland. Oceania: Australia, New Zealand. N. America: Canada, USA.
15.Battery life varies depending on product specifications, computer settings, and applications or features launched, and may be reduced if Windows Aero™ is enabled. All batteries' maximum capacity diminishes with time and use.
In a continuing effort to improve the quality of our products, information in this document is subject to change without notice. Images shown are only representations of some of the configurations available for this model. Availability may vary depending on region.
As a phenomenon known to thin-film transistors (TFTs), liquid crystal displays (LCDs) commonly exhibit a small number of discoloration dots, as so-called "non-conforming pixels." This phenomenon is a limitation of TFT LCD technology, not a product defect, and as such is not covered by Acer's warranty.
2008 Acer Inc. All rights reserved. Acer, the Acer logo, and Aspire are registered trademarks of Acer Inc. Other trademarks, registered trademarks, and/or service marks, indicated or otherwise, are the property of their respective owners.
Microsoft and Windows are registered trademarks of Microsoft Corporation. Intel and Pentium are registered trademarks of Intel Corporation.
