Dell Latitude E6400 ATG Laptop Technical Specifications

Dell Latitude E6400 ATG Laptop Technical Specifications

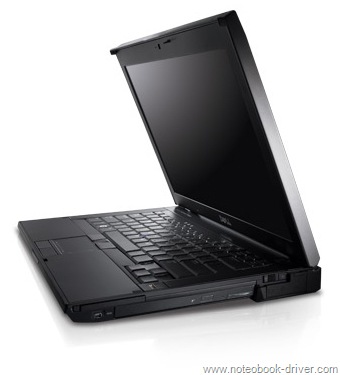

dell_latitude_atg_e6400 Engineered to increase your productivity regardless of location or terrain, the Dell Latitude E6400 ATG features innovations in durability, security and performance.

  • Full-featured, Semi-Rugged Design
  • Advanced End-Point Security Features
  • Meets strict MIL-STD 810F requirements for extreme temperatures, vibration, dust intrusion and altitude.

Rugged Design

Designed to meet tough Military standards (MIL-STD 810F) for vibration, dust, humidity, and altitude the Latitude E6400 ATG is engineered to go wherever the job takes you. With premium magnesium alloy construction, longer-lasting textured paint finishes and robust metal hinges, the new Latitude E6400 ATG is more durable than ever. Work more comfortably with a precision-tuned keyboard that offers stronger key durability and optional backlighting.

All-Day Mobile Computing

Meet the laptop that can last as long as your work day. Achieve up to 16 hours of battery life with the combination of our standard 9-cell battery, new high capacity battery slice and exclusive Dell ControlPointTM  software. Stay connected anytime, anywhere with Dell Control Point Connection Manager, which enables fast and easy wireless connections with support for current and emerging wireless technologies (Wi-Fi® , mobile broadband, Bluetooth  2.1, WiMAX , High Performance Wireless-N).

Dell Latitude E6400 ATG Laptop Technical Specifications:

Processors
Intel  Core 2 Duo Processor
  Operating System
Genuine Windows Vista  Ultimate
Genuine Windows Vista  Business
Genuine Windows Vista  Business 64-Bit
Genuine Windows Vista  Home Basic
Genuine Windows  XP Professional
  Chipset
Intel  45 Express Chipset
  Displays
14.1" Premium WXGA (1280x800) Outdoor Viewable Touchscreen LED Display (Wide View)
14.1" Premium WXGA (1280x800) Outdoor Viewable LED Display (Wide View)
  Memory
Dual Channel DDR2 Memory
Available DIMM Slots: Two Memory slots offering up to 8GB
Memory Bandwidth: 800MHz
  Primary Storage
Shock-mounted 120GB2
7200 RPM Free Fall Sensor Hard Drive up to 250GB2
7200 RPM Encrypted Hard Drive with Free Fall Sensor up to 160GB2
5400 RPM Encrypted Hard Drive up to 120GB2
5400 RPM up to 250GB2
Solid State Hard Drive up to 128GB2
  Optical Drives
DVD-ROM, CD-RW/DVD, DVD+/-RW
  Graphics Cards
NVIDIA  Quadro  NVS 160M 256MB DDR2
Intel  Graphics Media Accelerator 4500MHD5
  Connectivity
Wired:
10/100/1000 Gigabit Ethernet network interface adaptor
56K v924 Internal Modem (Optional)

Wireless LAN:
Dell Wireless 1397 (802.11g)
Dell Wireless 1510 (802.11a/g/n 2x2)
Intel  WiFi Link 5100 [802.11a/g/n (1x2)]
Intel WiFi Link 5300 [802.11a/g/n (3x3)]

Mobile Broadband & GPS:
Dell Wireless 5720 (EvDO & GPS) Mobile Broadband Mini Card
Dell Wireless 5530 (Tri-band HSDPA 7.2/HSUPA 2.0 & GPS) Mini-Card

Bluetooth & Ultra-Wideband:
Dell Wireless 370 Bluetooth  2.1
Dell Wireless 410 Bluetooth  2.1 with UWB
  Security
Physical Security:
Steel-reinforced Cable Lock Slots, Media Module and Hard Drive Locks.

User & System Security:
Smart Card Reader and Contactless Smart Card Reader
Fingerprint Reader (optional)
TPM 1.2
Optional Encrypted Hard Drive provides full disk encryption
ControlVault - secure credential management within a trusted boundary

Network Security:
802.11 Wi-Fi Protected Access (WPA), 802.11i (WPA2), Virtual Private Networks (VPN) 802.1x with EAP modes and compatible with CCX 4.0
  Multimedia
2 speakers, digital microphone (optional)
Integrated Webcam (optional)
  Expandability
Slots:
5-in-1 card reader; PCMCIA

Docking:
E-Port, E-Port Plus, E-Legacy Extender, E-Flat Panel Stand, E-Monitor Stand, E-View Laptop Stand, E-Media Bay

Modular Options:
E-Family modular media bay: 8X DVD-ROM, 24X CDRW/DVD, 8X DVD+/-RW, second Hard Drive or Travel Lite Module

  Chassis
Magnesium Alloy LCD back and Base
High Durability Textured Paint

Weight & Dimensions:
Starting at: 5.75 lbs/1.92 kg
Width: 13.1"/335mm
Depth: 8.66"/220mm
Height: 1.18-1.3"/30/35mm

Ports:
IEEE - 1394, docking connector, USB 2.0 (x4), VGA, Display Port, RJ-11 (optional), RJ-45, eSATA, USB PowerShare, headphone/speaker out, mic

MIL Spec:
Tested to MIL-810F (510.4 procedure) for Dust
Tested to MIL-810F (514 procedure I; category 20 & 24) for Non-Op and Op Vibration
Tested to MIL-810F (507.4 procedure) for Humidity
Tested to MIL-810F (procedure I & II) for Altitude

IP Spec:
IP 5x certification for dust

Expanded Dell Spec for ATG:
Tested for Minimum 30" drop
Operational temperature of (-30) to 40 degree Centigrade
(Mainstream Dell spec is 0 to 40 deg C)
  Power
Power Supply:
90 Watt AC adapter with cord wrapping
6-cell or 9-cell extended life primary batteries
84Whr high capacity battery slice (optional)
