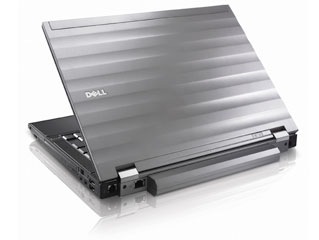

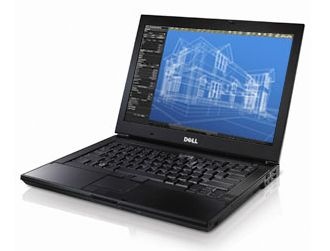

Dell Precision M2400 Mobile Workstation Technical Specifications

Dell Precision M2400 Mobile Workstation Technical Specifications

Dell Precision M2400 Mobile Workstation Mobile Performance without Compromise

Experience the ultimate in performance and portability with the Dell Precision M2400. Highlights include:

- Advanced 3D graphics with an OpenGL graphics solution and 256MB dedicated graphics memory for demanding tasks such as video editing, animation and CAD manipulation
- A starting weight of only 4.77lbs (2.16kg) with an LED panel, 2.5" thin SSD Drive and 6-cell battery, making the Dell Precision M2400 Dell's lightest workstation to date
- The ability to handle complex applications and multi-tasking with the latest generation Intel Core 2 Duo processors, Centrino  2 vPro capability and up to 8GB of system memory
- A vivid 14.1" display
- A long-life battery to maximize productivity
- A choice of 32bit and 64bit operating systems to enable a wide range of workstation applications
- Wireless communication with Wi-Fi, Mobile Broadband, Bluetooth®  and HyperBand Diversity Antenna
- Comprehensive security and data protection features such as a robust software suite, multi-level user authentication and secure e-mail and web access

Dell Precision M2400 Mobile Workstation Certified ISV Technology

Dell understands that businesses require technical reliability and ease of integration. To that end, we:

    - Partner with leading Independent Software Vendors (ISVs) to certify system and application compatibility
    - Conduct rigorous testing to ensure exceptional performance
    - Base every Dell Precision on standards-based technologies

Select an ISV certified Dell Precision and help ensure the applications you depend on run smoothly, right out of the box.

Built for Business

The M2400 is compatible with a wide variety of Latitude E-Family docking systems and peripherals to help improve overall system management. Even better, it promises a low total cost of ownership with few technology refreshes - meaning reduced support costs.

Dell Precision M2400 Mobile Workstation Technical Specifications:

Intel  Core 2 Duo Processors
Intel  Core 2 Duo P8400 (2.26GHz,1066MHz,3MB)
Intel  Core 2 Duo P8600 (2.4GHz,1066MHz,3MB)
Intel  Core 2 Duo T9400 (2.53GHz,1066MHz,6MB)
Intel  Core 2 Duo T9600 (2.8GHz,1066MHz,6MB)
  Operating System
Genuine Windows Vista  Ultimate 32-Bit
Genuine Windows Vista  Ultimate 64-Bit
Genuine Windows Vista  Business 32-Bit
Genuine Windows Vista  Business 64-Bit
Genuine Windows Vista  Ultimate with Downgrade Rights Service to Windows  XP Professional
Genuine Windows Vista  Business with Downgrade Rights Service to Windows  XP Professional
Intel PM45 Express
14.1" WXGA+ LED Back-lit Display (1440x900) Resolution
14.1" WXGA UltraSharp Display (1280x800) Resolution
Dual Channel DDR2 SDRAM
Available DIMM Slots: Two Memory slots offering up to 8GB
Memory Bandwidth: 800MHz
  Primary Storage
5400RPM Encrypted Hard Drive up to 160GB
7200RPM Free Fall Sensor Hard Drive up to 320GB
5400RPM FFS HDD up to 500GB
Ultra Performance Solid State Hard Drive up to 64GB
  Optical Drives
8X DVD+/-RW Drive with Optical Media
  Graphics Cards
NVIDIA  Quadro FX 370M Graphics with 256MB dedicated memory
10/100/1000 Ethernet controller, 56K v9 Internal Modem (Optional)

Wireless LAN, Bluetooth  2.1
Dell Wireless 1397 802.11g Mini-Card
Dell Wireless 1510 802.11 a/g/n 2/3 Mini-Card
Intel Wireless 5100 802.11a/g/n 1/2 Mini-Card
Intel Wireless 5300 802.11a/g/n 3/3 Mini-Card
Dell Wireless 5530 (HSDPA) Mini-Card
Dell Wireless 5720 (EVDO) Rev A
Availability varies by region
Physical Security:
Steel-reinforced Cable Lock Slots, Media Module and Hard Drive Locks.

User & System Security:
Smart Card Reader and Contactless Smart Card Reader (optional)
Fingerprint Reader (optional)
TPM 1.2 (where available)
Dell ControlPoint Security Manager

Network Security:
802.11 WiFi Protected Access (WPA), 802.11i (WPA2), Virtual Private Networks (VPN) 802.1x with EAP modes and compatible with CCX 4.0
2 speakers, optional microphone
Optional camera and microphone
5-in-1 card reader; ExpressCard 54

Advanced E-Port, E-Port, Legacy Port Replicator, Ergo Flat Panel Stand, Basic Monitor Stand, E-View Notebook Stand

Modular Options:
E-Family modular media bay: DVD-ROM, CD-RW/DVD, DVD+/-RW, Second Hard Drive

Magnesium Alloy LCD back and Base

Weight & Dimensions:
Preliminary weight starting at: 4.77lbs, 2.16kg with WXGA+ panel, DVD/CDRW, 2.5" thin SSD Drive and 6-cell battery.
Width: 13.2"/335mm
Depth: 9.6"/243.9mm
Height: 1"/26.3mm(F), 1.25"/31.9mm(B)

1394, USB 2.0 (x4), VGA, Display Port, RJ-11(optional), RJ-45, Audio, eSATA
Power Supply:
90 Watt AC adapter with cord wrapping
6-cell or 9-cell extended life primary batteries
84Whr high capacity battery slice
