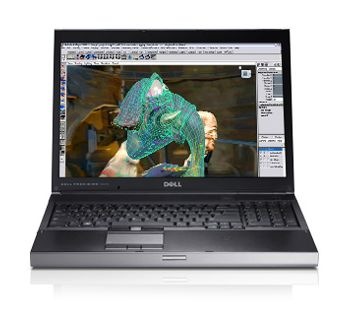

Dell Precision M6400 Mobile Workstation Technical Specifications

Dell Precision M6400 Mobile Workstation Technical Specifications

Dell Precision M6400 Mobile Workstation Awesome Performance

Where other mobile workstations start to fade is just where the M6400 comes into its own. With specifications that even some desktop workstations might struggle to deliver, the flagship mobile workstation from Dell is ideal, even for the most demanding user. Optional Intel®  Quad Core processing power, working in harmony with a super-fast 1066MHz FSB, is only matched by the options of RAID 0 storage performance and stunning NVIDIA®  Quadro FX graphics. Designed to be a workstation, the M6400 has the thermal headroom to deliver the certified ISV application performance levels you expect from Dell Precision.

Massive Scalability

Such raw performance needs to be matched with the ability to manage huge amounts of data. The M6400 enables memory scalability up to 16GB thanks to the Intel®  Q43 chipset that provides support for 4 memory DIMM slots. With two dedicated hard drive bays the storage capacity can scale up to 1 Terabyte and, if that isn’t enough, the e-SATA interface enables you to directly connect external SATA hard drives.

Dell Precision M6400 Mobile Workstation Advanced Design

The M6400 is designed from the ground up to be a mobile workstation with all the needs and expectations of our most demanding customers in mind. Its sleek aluminum chassis and optional edge-to-edge 17" screen make a statement wherever it may be. The M6400 is designed to be a mobile workstation with all the needs and expectations in mind of our most demanding customers. Its sleek aluminum chassis and optional RGB LED edge-to-edge 17" screen with 100% Adobe®  color gamut support gives you the tools you need to work at the speed of thought.

Dell Precision M6400 Mobile Workstation Technical Specifications:

  Processors
Intel  Core 2 Duo, Core 2 Duo Extreme Edition, Core 2 Duo Quad Core Extreme Edition Processors
  Operating System
Genuine Windows Vista  Ultimate 32-Bit
Genuine Windows Vista  Ultimate 64-Bit
Genuine Windows Vista  Business 32-Bit
Genuine Windows Vista  Business 64-Bit
Genuine Windows Vista  Ultimate with Downgrade Rights Service to Windows  XP Professional
Genuine Windows Vista  Ultimate with Downgrade Rights Service to Windows  XP Professional x64 Edition
Genuine Windows Vista  Business with Downgrade Rights Service to Windows  XP Professional
Genuine Windows Vista  Business with Downgrade Rights Service to XP Professional x64 Edition
Red Hat  Linux 5.1 64-Bit
  Displays
17" WXGA+ UltraSharp Display (1440x900) Resolution
17" WUXGA UltraSharp Display (1920x1200) Resolution
17" WUXGA RGB LED Back-Lit Display (1920x1200) Resolution
17" WUXGA RGB LED Edge To Edge Back-Lit Display (1920x1200) Resolution
  Memory
Dual Channel DDR3 Memory
Available DIMM Slots: Four Memory slots offering up to 16GB
Memory Bandwidth: 1066MHz
  Primary Storage
Support for one or two hard drives with optional RAID0 or RAID1 configuration
Encrypted Hard Drive up to 160GB
7200RPM Free Fall Sensor Hard Drive up to 320GB
5400RPM HDD up to 500GB
Solid State Hard Drive up to 128GB
  Optical Drives
DVD-ROM, CD-RW/DVD, DVD+/-RW
  Graphics Cards
NVIDIA  Quadro FX 2700M Graphics with 512MB dedicated memory
NVIDIA  Quadro FX 3700M Graphics with 1GB dedicated memory
  Connectivity
WLAN
Wireless LAN, Bluetooth  2.1 and Ultra-Wideband (UWB-US Only)
Next Generation Mobile Broadband, GPS

Wireless:
Dell Wireless 1397 802.11g Mini-Card
Dell Wireless 1510 802.11 a/g/n 2x3 Mini-Card
Intel Wireless 5100 802.11a/g/n 1x2 Mini-Card
Intel Wireless 5300 802.11a/g/n 3x3 Mini-Card

WWAN (US Only)
Dell Wireless 5530 (HSDPA) Mini-Card
Dell Wireless 5720 (EVDO) Rev A
  Security
Physical Security:
Steel-reinforced Cable Lock Slots, Media Module and Hard Drive Locks.

User & System Security:
Smart Card Reader and Contactless Smart Card Reader
Fingerprint Reader (optional)
FIPS Fingerprint Reader (optional)
TPM 1.2 (where available)
Wave Embassy Trust Suite

Network Security:
802.11 WiFi  Protected Access (WPA), 802.11i (WPA2), Virtual Private Networks (VPN) 802.1x with EAP modes and compatible with CCX 4.0
  Multimedia
2 speakers, optional dual array microphones
Optional 2MP camera
  Expandability
Slots:
8-in-1 card reader; ExpressCard 54; PC Card

Docking:
Advanced E-Port, E-Port, Legacy Port Replicator, Ergo Flat Panel Stand, Basic Monitor Stand, E-View Notebook Stand

Modular Options:
E-Family modular media dock: DVD-ROM, CD-RW/DVD, DVD+/-RW, Second Hard Drive

  Chassis
Aluminum LCD back and base
New Dell Precision  industrial design

Weight & Dimensions:
Preliminary weight starting at: 8.5lbs/3.86kg with WXGA+ panel, DVD/CDRW, 9-cell battery.
Width: 15.4"/393mm
Depth: 11.0"/280.5mm
Height: 1.35"/34.5mm(F), 1.5"/38.5mm(B)

Ports:
1394 Powered 6-pin, USB 2.0 (x4), VGA, Display Port, RJ-45, Audio, eSATA
  Power
Power Supply:
210 Watt AC adapter
9-cell extended life primary batteries
