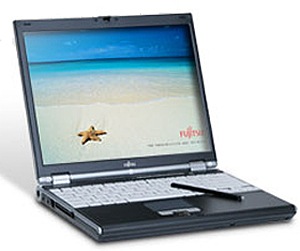

Fujitsu Lifebook B6110D Notebook Technical Specifications

Fujitsu Lifebook B6110D Notebook Technical Specifications

fujitsu lifebook b6110d notebook Fujitsu Lifebook B6110D Notebook Technical Specifications

At a glance:

- Intel® Pentium® M Processor Ultra Low Voltage 753
- Intel® 915GMS chipset
- 12.1" XGA TFT display with touch screen
- Video Controller Intel® Graphics Media Accelerator 900
- 80 GB, 60 GB or 40 GB; 4200 rpm; ATA 100
- Atheros Super AG® Wireless LAN (802.11a/b/g);
- Microsoft® Windows® XP Tablet PC Edition 2005

Operating System Communications Non-operating Temperature
Software Wireless Communications Key Accessories
Optional Software User Interfaces Compliance
Processor Ports Warranty
Chipset Card Slots
Memory Security
Display Battery
Hard Drive AC Adapter
Digitizer Dimensions/Weight
Audio Operating Temperature

Model B6110D
Software
Operating Systems Microsoft® Windows® XP Tablet PC Edition 2005
Microsoft® Windows® XP Professional
Software Adobe® Reader®, Norton AntiVirus with 90-day free trial, Microsoft® Internet Explorer, Journal Viewer, Fujitsu Security Panel, Fujitsu Application Panel (with Windows XP Professional only), Fujitsu HotKey Utility, Touch Screen Calibration Utility, Fujitsu Driver Update Utility, Fujitsu Menu Utility (with Windows XP Tablet PC Edition only), TPM Driver and Application CD
    Optional Software Depending on your system configuration, you may also receive: Bluetooth Utility and/or Softex OmniPass
      Key Specifications
      Processor Intel® Pentium® M Processor Ultra Low Voltage 753 (1.20 GHz, 2 MB L2 cache, 400 MHz FSB)
        Chipset Intel® 915GMS
        Memory
        • Two DIMM slots; Up to 2 GB (1 GB x 2)
        • DDR2 400 MHz, 200-pin SODIMM
        Display LCD 12.1" XGA TFT display with touch screen
        Video Controller Intel® Graphics Media Accelerator 900
        • Simultaneous and dual support for external monitor and internal display, multi-screen display support for graphic editing or presentations.
        • Dynamic Video Memory Technology (DVMT) responds to application requirements and efficiently allocates the proper amount of system memory (up to 128 MB) for optimal graphics and system performance
        Resolution
        • Maximum internal display: 1024 x 768, 16M colors
        • External monitor: 1600 x 1200, 16M colors
        • Supports simultaneous display: 1024 x 768, 16M colors
        Hard Drive¹ 80 GB, 60 GB or 40 GB; 4200 rpm; ATA 100; shock-mounted
        Digitizer Resistive (Passive)
        Audio
        • RealTek™ ALC260 with 16-bit stereo audio
        • Headphone/line-in jack and mono microphone/line-out jack
        Communications Multinational² 56K³ V.90 Modem and Gigabit Ethernet LAN (V.92 drivers available for download)
        Wireless Communications
        • Atheros Super AG® Wireless LAN (802.11a/b/g); WPA certified; Dual-band diversity antenna
        • Antenna ON/OFF switch
        • Optional Bluetooth (v1.2) Personal Area Network (PAN) for file transfer and data synchronization with other Bluetooth devices
        User Interfaces
        • Integrated touchpad with scroll button
        • Intuitive touch screen
        • 82-key full-size keyboard with 18 mm key pitch and 2 mm key stroke
        Ports
        • Two USB 2.0
        • Built-in microphone
        • VGA, modem (RJ-11)
        • Ethernet LAN (RJ-45)
        • Headphone/line-out
        • Microphone/line-in
        • Docking connector
        Card Slots
        • One Type II Compact Flash (CF) card slot
        • One Type I/II; 32-bit PC CardBus architecture (with built-in Smart Card reader)4
        Security
        • Integrated Trusted Platform Module (TPM), Security Panel
        • Smart Card ready4
        • Optional Authen Tec Fingerprint Sensor with TruePrint Technology; 15 cm/sec slide speed (replaces scroll button with scroll function still intact)
        Battery 5 Main battery: Lithium ion (6-cell 7.2V, 7800mAh, 56.2 WHr); provides up to 6 hours of battery life
        AC Adapter Autosensing dual voltage support, 100-240V AC supplying 16V DC, 3.75A
        Dimensions and Weight 10.55" x 9.02" x 1.29"; approx 3.3 lbs with main battery
        Operating Temperature 41°F to 95°F / 5° to 35°C (ambient temperature); 20% to 85% relative humidity, non-condensing
        Non-operating Temperature 5°F to 140°F / -15°C to 60°C, 8% to 85% relative humidity; non-condensing
        Key Accessories Port replicator
        For a full list of accessories, visit www.shopfujitsu.com or call 1-800-FUJITSU
        Service & Regulatory Information
        Compliance
        • FCC Part 15B Class B, FCC Part 15C, and FCC Part 15E; IC ICES-003 Class B and RSS
        • UL-cUL Listed
        • FCC Part 68; IC CS-03
        • CE Marking
        • ENERGY STAR®
        Warranty6
        • One-year or three-year International Limited Warranty
        • 24/7 technical support
        • Fujitsu extended service plans available
        1. Accessible capacity may be less due to formatting, applications, and backup utilities.
        2. The internal modems on all Fujitsu Tablet PCs from Fujitsu Computer Systems Corporation are only qualified for use with telephone systems in selected countries, including the United States and Canada. For a list of certified countries, please check http://www.computers.us.fujitsu.com/modems.
        3. Actual speeds over U.S. telephone lines vary, and are less than 56Kbps due to the current FCC regulations and line conditions.
        4. Require a Smart Card holder in order to access the reader. Third-party Smart Card and application required.
        5. Battery life estimates reflect the results of BAPCo MobileMark2002 Productivity Workloads performed upon systems with battery life setting enabled. Actual battery life will vary based on screen brightness, applications used, features selected, power management settings, battery conditioning, and other customer preferences. DVD/CD-RW, DVD Writer, LAN, wireless LAN or hard drive usage may also have a significant impact on battery life.
        6. Service and warranty turnaround time may vary by country and product. The International warranty is only valid for products purchased in North, Central, and South America.
