Fujitsu LifeBook N6470 Notebook Technical Specifications

Fujitsu LifeBook N6470 Notebook Technical Specifications

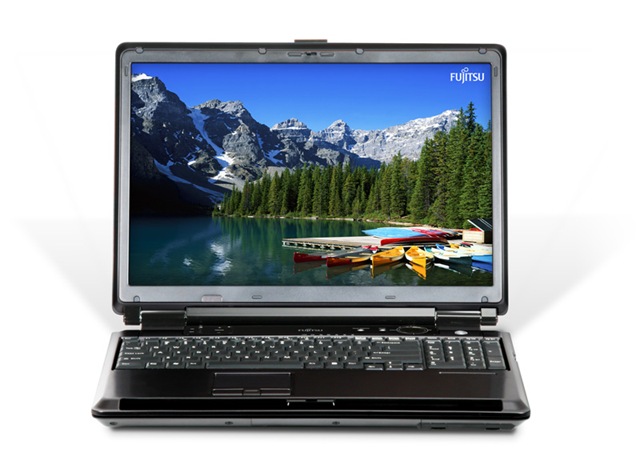

fujitsu lifebook n6470 notebookWith the new Genuine Windows Vista® Home Premium, your notebook will transform into an uncompromising Media Center PC. The high-speed mobile Intel® Core™ 2 Duo Processor coupled with high speed ATI Mobility™ Radeon® HD 2600 graphics delivers the level of performance gamers and technology enthusiasts crave. With its unique high contrast 17-inch Color-Enhanced Crystal View display, video optimization circuitry and built-in stereo sound system (which includes a subwoofer), the LifeBook N6470 notebook takes your mobile experience to a whole new level.

- Mobile Intel PM965 Express Chipset, Intel Core Duo 2 Processor
- 17" Color-Enhanced Crystal View wide XGA+ TFT display
- ATI Mobility Radeon HD 2600 with 512 MB HyperMemory
- Intel Wireless WiFi Link 4965AGN or ATHEROS XSPAN wireless (802.11 a/g/n)

Fujitsu LifeBook N6470 Notebook Technical Specifications



Model N6470
Software
Operating Systems Genuine Windows Vista Home Premium with
Microsoft Works and
Microsoft Office Home and Student 2007 60-Day Trial
Software Adobe Reader, Microsoft Internet Explorer, Norton Internet Security 20081, Fujitsu HotKey and Fujitsu Driver Update Utility, CyberLink PowerDVD, PowerProducer, PowerDirector, Roxio Easy Media Creator, Google Desktop, Google Toolbar, Softex OmniPass finger print authentication and password management software
Optional Software You may also receive, CyberLink MakeDisc software CD
Key Specifications
Listed specifications are for the current model only and NOT for earlier models or revisions to this product.
Processor Intel Core Duo 2 Processor T8100 (2.1 GHz, 3 MB L2 cache, 800 MHz FSB)
Intel Core Duo 2 Processor T5750 (2. 0 GHz, 2 MB L2 cache, 667 MHz FSB)
Intel Core Duo 2 Processor T5550 (1.83 GHz, 2 MB L2 cache, 667 MHz FSB)
Chipset Mobile Intel PM965 Express Chipset
Memory Two DIMM slots; max 4 GB2 (2 GB x 2); DDR2 667 MHz PC2-5300, dual-channel
Display LCD
17" Color-Enhanced Crystal View wide XGA+ TFT display; Brightness 370 nits; contrast ratio 600:1
Video Controller
ATI Mobility Radeon HD 2600 with 512 MB HyperMemory™3
Resolution
Maximum internal display: 1440 x 900, 16M colors
External monitor: 1600 x 1200, 16M colors
Simultaneous display: 1024 x 768, 16M colors
Hard Drive2 Dual Serial ATA Hard Drive Configuration
  • 320GB = 160GB + 160GB (5400rpm)
  • 500GB = 250GB + 250GB (4200rpm)
Optical Drive Dual-Layer Multi-Format DVD Writer: Blu-ray™ DVD
24x CD-R
10x CD-RW
8x DVD-R
4x DVD-RW
2x DVD-R DL
8x DVD+R
4x DVD+RW
2.4x DVD+R DL
5x DVDRAM
Read 24x CD-ROM, 24x CD-R, 24x CD-RW, 8x
DVD-ROM, 8x DVD-R, 6x DVD-R DL, 6x DVD-RW,
8x DVD+R, 6x DVD+R DL, 6x DVD+RW, 5x DVDRAM, 1.6x BD-ROM, 1x BD-R, 1x BD-R DL, 1x BDRE, 1x BD-RE DL
Write 8x CD-R, 10x CD-RW, 8x DVD-R, 2x DVD-R
DL, 4x DVD-RW, 8x DVD+R, 2.4x DVD+R DL, 4x
DVD+RW, 5x DVD-RAM, 1x BD-R, 1x BD-R Dual Layer , 1x, BD-RE, 1x BD-RE Dual Layer
Audio
  • Realtek ALC262
  • Headphone/line-out/optical digital (SPDIF) jack
  • Microphone/line-in jack
  • 2 internal stereo speakers and subwoofer
Communications Multinational4 56K5 V.90 modem and 10/100/1000 Gigabit Ethernet LAN
Wireless Communications Intel Wireless WiFi Link 4965AGN (802.11 a/b/g and Draft N)
Wi-Fi, CCX and WPA certified, or ATHEROS XSPAN wireless (802.11 a/g/n) on select configurations
User Interfaces Integrated touchpad with fingerprint sensor which can also be used for scroll function. 103-key full-size keyboard with a separate 10-key keypad; 19 mm key pitch and 3 mm key stroke
Ports Five USB 2.0
IEEE 1394 (4-pin)
S-Video out
HDMI Port
External CRT
Modem (RJ-11)
Gigabit Ethernet (RJ-45)
Card Slots One Type I/II PCMCIA slot
One ExpressCard™ slot
54 mm/34 mm
One shared slot for:
Memory Stick
Memory Stick PRO™
Secure Digital (SD) card
xD Picture card
Security Security lock slot
Integrated fingerprint sensor
Battery6 Main lithium ion battery (6-cell 10.8V, 3200 mAh) Up to 1 hour battery life
AC Adapter Autosensing 100-240V AC, 100W, supplying 19V DC, 5.27A
Dimensions/Weight 15.86" x 11.6" x 1.8" / 2.02"; approx. 10.58 lbs.
Operating Temperature 41°F to 95°F / 5°C to 35°C (ambient temperature); 20% to 85% relative humidity, non-condensing
Non-Operating Temperature 5°F to 140°F / -15°C to 60°C; 8% to 85% relative humidity, non-condensing
Key Accessories For a full list of accessories, visit www.shopfujitsu.com or call 1-800-FUJITSU
  • Additional Lithium ion battery
  • Additional AC adapter
  • Carrying Case
  • Auto/Air Adapter
External ExpressCard TV Tuner  on select configurations Audio/Video In S-Video In Y Signal: 1Vp-p, 75 ohm
C Signal: 0.286Vp-p, 75 ohm
Video In Signal: 1Vp-p, 75 ohm
Stereo Audio In with 10 Pin Connector Audio Level: 0.7Vrms, typical.
Input impedance: 10K ohm
Resolution Up to 720x480
Channel Support FCC Part 15B Class B and FCC Part 15C and FCC Part 15E; IC ICES-003 Class B and RSS-210
UL-cUL Listed
FCC Part 68; IC CS-03
CE Marking (Not supported when configured with the LAN module)
ExpressCard™ ID EC100064
Encoder Video compression method: MPEG2
Compliance and Service Information
Compliance
    FCC Part 15B Class B and FCC Part 15C and FCC Part 15E; IC ICES-003 Class B and RSS-210
    UL-cUL Listed
    FCC Part 68; IC CS-03
    CE Marking (Not supported when configured with the LAN module)
    ExpressCard™ ID EC100062
Warranty7 One- or three-year International Limited Warranty on select corporate configurations; 24/7 technical support; Fujitsu extended service plans available.

  1. Norton Internet Security 2008. The 90-day trial version is activated upon user’s acceptance of software license
  2. One gigabyte (GB) = one billion bytes; accessible capacity will be less and actual capacity depends on the operating environment and formatting.
  3. 512 MB HyperMemory is a total of 256 MB dedicated video and 256 MB shared system memory.
  4. The internal modems on all Fujitsu notebooks from Fujitsu Computer Systems Corporation are only qualified for use with telephone systems in select countries, including the United States and Canada. For a list of certified countries, please check http://www.computers.us.fujitsu.com/modems.
  5. Actual speeds over U.S. telephone lines vary, and are less than 56Kbps due to the current FCC regulations and line conditions.
  6. Battery life estimates reflect the results of BAPCo MobileMark2007 Productivity Workloads performed upon systems with battery life setting enabled. Actual battery life will vary based on screen brightness, applications used, features selected, power management settings, battery conditioning, and other customer preferences. DVD/CD-RW, DVD Writer, LAN, wireless LAN or hard drive usage may also have a significant impact on battery life.
  7. Service and warranty turnaround time may vary by country and product. The International warranty is only valid for products purchased in North, Central, and South America.

Specifications are subject to change without notice.
