Fujitsu LifeBook U2010 UMPC Notebook Specifications

Fujitsu LifeBook U2010 UMPC Notebook Specifications

lifebook_u2010-2

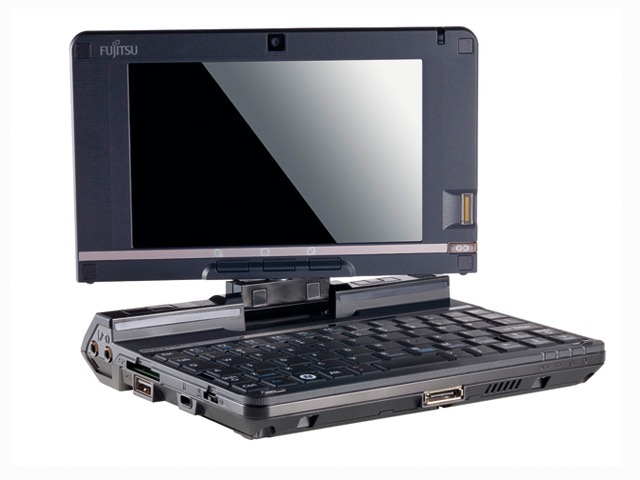

The new Fujitsu LifeBook U2010 is the ultimate 3-in-1 PC companion. Featuring full computing capabilities in an ultra-mobile unit that fits snugly in your palm, it will change the way you work, play and entertain. Business users on the go will appreciate the robust processing power and efficient energy consumption of the U2010. With the built-in 1.3 Mega Pixel camera and the latest full-featured Intel® Centrino® Atom™ processor technology, it is the ideal digital multi-media solution. Experience unparalleled fun and maximum functionality anywhere.

  • Super light-weight, 5.6-inch touch-screen tablet-convertible Ultra-Mobile PC (UMPC) with Intel® Centrino® Atom™ processor technology.
  • Genuine Windows Vista® Home Premium
  • Intelligently designed as a Notebook, Tablet PC or Hand-held to suit your flexible work mode
  • Microsoft® Origami™ Experience 2.0 for quick-touch access of music, videos, pictures, games and other favourite functions
  • Optimal connectivity via built-in Wireless LAN, Fast Ethernet and Bluetooth® v2.1
  • Wirelessly play audio and music to nearby FM radio speakers
  • WXGA display with high brightness 300nits for superb outdoor stunning view of text, graphics and videos
  • Never lose your way and go with direction with Integrated GPS

Fujitsu LifeBook U2010 UMPC Notebook Specifications

Specifications
Platform Intel® Centrino®Atom™ processor technology
- Intel® Centrino® Atom™ processor Z530 (1.6GHz, 512 L2 Cache, 533Mhz)
- Intel® System Controller Hub
Operating System Genuine Windows Vista® Home Premium
(or Genuine Windows Vista® Business)
Display 5.6-inch SuperFine WXGA TFT10, 1280 x 800 pixels, Passive Touch Panel
Memory 1GB DDR2 533MHz
Hard Disk 60GB HDD/ 64GB SSD
Bluetooth® v2.1 + EDR
Battery Up to 3.5hrs 1 on HDD / Up to 4hrs 1 on SSD(2-cell Li-Ion 2900mAh)
Weight Approx. 0.61kg
Detailed Specifications
Hard Disk Drive 60GB HDD: 1.8-inch PATA Ultra DMA 100 (4200rpm), 2 plates, S.M.A.R.T support, Two Partitions - 50/502
Graphics Intel® Graphics Media Accelerator 500
High Definition (HD) Audio RealTek ALC269 HD audio codec with built in speaker and digital microphone
Communication Bluetooth® v2.1, RealTek Fast Ethernet, Atheros® XSPAN™ 802.11n 3 with dual antenna, 1.3 Mega Pixel camera, GPS 11
User Interface Keyboard with Glide Point: 68-keys, 15mm key pitch, 1.3mm key stroke
Glide Point with two buttons (left & right)
Touch Screen Panel with Stylus Pen
4 LEDs Indicator (Power-LED, DC-in/ Charge-LED, Battery Status-LED, HDD Access-LED)
Card Slot 1 x Type I/II CF Card slot
1 x Secure Digital (SD) Card Reader
Connector Interface USB 2.0 x 1, Audio-in, Audio-out, Power Adapter DC-in, VGA (external display) and RJ45 (LAN) via bundled LAN/ VGA adapter connector
Quick Launch Panel Two programmable application buttons, two programmable up/down key buttons, one rotation button, one Ctrl+Alt+Del button and one FnKey button
Security4 User and supervisor BIOS password, Boot Sector Write Prevention, Fingerprint Sensor, SMART HDD, Anti-theft Lock Slot
Dimensions Approx 171mm (W) x 135mm (D) x 26.5 - 33.0mm (H)
Bundled Accessories
AC Adapter Input AC100-240V, Output DC16V,2.5A (40W)
Bundled Software Microsoft® Origami™ Experience 2.0 Pack (Runs on Genuine Windows Vista® Home Premium Operating System only), Acronis True Image, Softex OmniPass, ArcSoft Camera Capture, Adobe Acrobat Reader, Sun Microsystems Java Runtime, Fujitsu UpdateNavi 5, Fujitsu Hardware Diagnostic Tool, Fujitsu Display Manager, Roxio Easy Media Creator, Microsoft Office Professional 2007 60-day Convertible Trial 6
Other Softwares 1 year Full Licensed Norman Virus Control
VGA/ LAN Adapter7 External adaptor for connection to RJ45 (LAN), VGA (external display)
Carrying Case7 Portable Slip Case
Optional Accessories
Port Replicator Connector Interface:
USB 2.0 x 4, VGA (external display), RJ45 (LAN), Power Adapter DC-in
Dimensions: 190 mm (W) x 110mm (D) x 159mm (H)
Weight: 0.33kg
Extended Battery Up to 7.5hrs 1 on HDD/ Up to 8.5hrs 1 on SSD (4-cell Li-Ion 5800mAh)
The above information shows the general technical specifications of the product and does not represent actual configuration that would be sold in your region. For specific configurations and their availability, please check with your local distributors.

Disclaimer

1. Results obtained from BAPCo® MobileMark®2007(Productivity Workload) performed on systems with maximum battery life settings under laboratory testing environment. Actual battery life will vary based on screen brightness, sound volume settings, running applications, connected peripherals, power management settings, battery conditioning, and other customer preferences in the real life situation. Built-in bay device or hard drive usage may also have a significant impact on battery life.
Note: Battery life is based on Intel® Centrino® Atom™ Processor Z530.
2. This refers to Windows Vista® hard disk drives C:\ and D:\ . 50/50 refer to approximate 50% allocation of user accessible hard disk storage to C:\ and D:\ drives respectively. For Windows Vista® hard disk drives, 1GB will be reserved for internal recovery usage which is not shown.
3. XSPAN™ are trademarks of Atheros® Communications. Client with Atheros® XSPAN™ enabled chipset, delivers a maximum of 300 Mbps link speed, with performance subject to wireless access point capacity and network environment.
4. BIOS Lock needs a supervisor/user password to access BIOS setup. BIOS settings can be configured to prompt for password at every first bootup or all bootup sequences. Access to BIOS setup is needed to configure Hard Disk Lock. Hard Disk Lock requires an access key to retrieve data on the hard disk. This is a Data Confidentiality security feature. LifeBook Lock requires a supervisor/user password to bootup the LifeBook when it powers up or resumes last session from suspend/hibernate mode. Anti-theft Lock Slot allows the use of a lock to physically secure the LifeBook. Fingerprint sensor uses AuthenTec TruePrint™ Technology and Softex OmniPass to remember customer list of user IDs and passwords. Full security unlock sequence - LifeBook Lock, Bootup Lock (BIOS Lock), Hard Disk Lock, Fingerprint Windows Logon. NOTE: Loss of password requires the LifeBook to be returned to Japan factory for system refresh. Cost of shipment and lost data will be borne by the customer. Backup your user's profile before changing HDD. Without the user's profile associated with a document at the point of encryption, Softex OmniPass cannot decrypt the encrypted document.
5. UpdateNavi is a Fujitsu Proprietary application that updates LifeBook drivers by connecting automatically to Fujitsu's server. This will help update your LifeBook with the latest software drivers and utilities to ensure compatibility between hardware and software, maintaining smooth operation anytime, anywhere.
6. Microsoft Office Professional 2007 60-day Convertible Trial needs online activation to begin. 60-day starts from day of activation.
7. Please check actual bundling with country local distributor.
8. Microsoft® Origami™ Experience 2.0 is UMPC-specific software suites that runs on Genuine Windows Vista® Home Premium Operating System only.
9. Transmit on FM frequencies ranging from 89 to 98MHz within a distance of 2 to 3 meters from FM Radio with application running on Genuine Windows Vista® Home Premium Operating System. Please check availability of FM Transmitters with your local distributors.
10. It is natural for all thin-film transistor (TFT) liquid crystal displays (LCD) to show a small number of missing or discolored dots. These are commonly known as non-conforming pixels. This is a technology limitation of TFT LCD and does not represent a defect. Fujitsu warranty does not cover limitations in technology such as non-conforming pixels.
11. Integrated GPS in selected configurations and its availability varies in countries. Please check with your local distributors.
