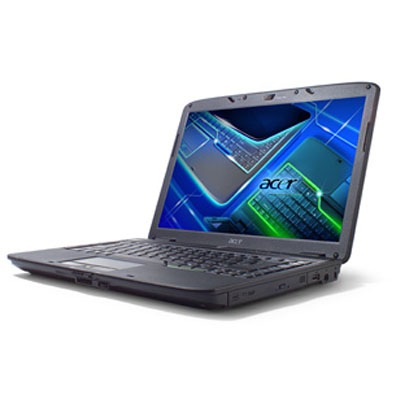

Introducing the Aspire 4730z on Intel's Montevina platform. Product Positioning Promising richer multimedia entertainment experiences, the Aspire 4730z flaunts 14.1" Acer CrystalBrite™ display, featuring the latest Intel® Pentium dual core processor and integrated Wi-Fi® functionality, delivers a feast of full sensory digital enjoyment on the road or at home.
The Aspire 4730z offers the following features and benefits:
Digital-life delight, Building on the aesthetics of the original Aspire design, this new design Notebooks are uniquely cool, made to enrich digital life with ease, excitement and individuality. The LCD cover is shaped with gradual curves, with a dark sub layer. The finish of the palm rest signifies refined taste and exacting technical prowess, complements the black keyboard, and highlights its brilliant elements.
Acer Aspire 4730z Notebook Technical Specifications:
|Processor||Intel® Pentium® dual-core mobile processor T3200 (1 MB L2 cache, 2.0 GHz, 667 MHz FSB, 35 W), supporting Intel® 64 architecture|
Mobile Intel® GL40 Express Chipset
Acer InviLink™ Nplify™2, 3, 802.11b/g/Draft-N WiFi CERTIFIED® network connection, supporting Acer SignalUp™ wireless technology
Acer InviLink™3 802.11b/g WiFi CERTIFIED® network connection, supporting Acer SignalUp wireless technology
|VGA||14.1" WXGA high-brightness (200-nit) Acer CrystalBrite TFT LCD, 1280 x 800 pixel resolution, supporting simultaneous multi-window viewing via Acer GridVista|
16 ms response time
|Memory||Dual-channel DDR2 SDRAM support|
2 GB of DDR2 667 MHz memory, upgradeable to 4 GB using two soDIMM modules6
|Graphics||Mobile Intel® GL40 Express Chipset with integrated 3D graphics, featuring Intel® Graphics Media Accelerator 4500M (Intel® GMA 4500M) with up to 1759 MB of Intel® Dynamic Video Memory Technology 5.0 (64 MB of dedicated video memory, up to 1695 MB of shared system memory), supporting Microsoft DirectX® 10|
Dual independent display support
16.7 million colors
External resolution/refresh rate:
2048 x 1536: 75/60 Hz
1920 x 1440: 85/75/60 Hz
1920 x 1200: 75/60 Hz
1920 x 1080: 100/85/75/60 Hz
1680 x 945: 100/85/75/60 Hz
1600 x 1200: 120/100/85/75/60 Hz
1600 x 900: 120/100/85/75/60 Hz
1400 x 1050: 85/75/60 Hz
1366 x 768: 85/75/60 Hz
1280 x 1024: 120/100/85/75/60 Hz
1280 x 960: 85/75/60 Hz
1280 x 768: 85/75/60 Hz
1280 x 720: 100/85/75/60 Hz
1024 x 768: 120/100/85/75/60 Hz
800 x 600: 120/100/85/72/60 Hz
WMV9 (VC-1) and H.264 (AVC) decoding
Acer Arcade™ Deluxe featuring Acer CinemaVision™ and Acer ClearVision™ technologies7
|Audio||Two built-in stereo speakers|
High-definition audio support
|Storage||One 160 GB or larger hard disk drive8|
5-in-1 card reader, supporting Secure Digital#153; (SD), MultiMediaCard (MMC), Memory Stick® (MS), Memory Stick PRO#153; (MS PRO), xD-Picture Card™ (xD)
|Optical Disk Drive||8X DVD-Super Multi double-layer drive:|
Read: 24X CD-ROM, 24X CD-R, 24X CD-RW, 8X DVD-ROM, 8X DVD-R, 8X DVD+R, 6X DVD-ROM DL (double-layer), 6X DVD-R DL (double-layer), 6X DVD+R DL (double-layer), 6X DVD-RW, 6X DVD+RW, 5X DVD-RAM
Write: 24X CD-R, 16X CD-RW, 8X DVD-R, 8X DVD+R, 4X DVD-R DL (double-layer), 4X DVD+R DL (double-layer), 6X DVD-RW, 8X DVD+RW, 5X DVD-RAM
|Communication||Acer Video Conference featuring:|
Integrated Acer Crystal Eye webcam supporting enhanced Acer PrimaLite™ technology1
WLAN1, 3: Acer InviLink™ Nplify™2 802.11b/g/Draft-N WiFi CERTIFIED® network connection, supporting Acer SignalUp™ wireless technology
WLAN1, 3: Acer InviLink™ 802.11b/g WiFi CERTIFIED® network connection, supporting Acer SignalUp™ wireless technology
WPAN: Bluetooth® 2.0+EDR (Enhanced Data Rate)
LAN: Gigabit Ethernet, Wake-on-LAN ready
Modem: 56K ITU V.92 with PTT approval9, Wake-on-Ring ready
|Dimensions and weight||340.4 (W) x 247 (D) x 22.9/42.3 (H) mm (13.4 x 9.7 x 0.9/1.6 inches) |
2.4 kg (5.29 lbs.) with 6-cell battery
|Power Supply||ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes|
48.8 W 4400 mAh 6-cell Li-ion battery pack:
Upto 3.0-hour battery life10
2.5-hour rapid charge system-off
3-pin 65 W AC adapter
ENERGY STAR 4.0
|I/O Ports||ExpressCard™/54 slot|
5-in-1 card reader (SD™, MMC, MS, MS PRO, xD)
Two USB 2.0 ports
External display (VGA) port
Ethernet (RJ-45) port
Modem (RJ-11) port
DC-in jack for AC adapter
|Keyboard||88-/89-/93-key keyboard with inverted "T" cursor layout, 2.5 mm (minimum) key travel|
Touchpad pointing device
12 function keys, four cursor keys, two Windows® keys, hotkey controls, embedded numeric keypad, international language support, independent US dollar and Euro symbol keys
Easy-launch buttons: WLAN, Bluetooth, volume up and down
Media keys: Play/pause, stop, previous, next
|Software||Acer Empowering Technology (Acer ePower, eDataSecurity1, eRecovery, eSettings Management)|
Acer Arcade™ Deluxe1 featuring Cinema, Album, Music, HomeMedia
Acer Crystal Eye1
Acer Launch Manager
Acer Video Conference Manager1
McAfee® Internet Security Suite
NTI Media Maker™
Microsoft® Works 8.5 with Office Home and Student 2007 Trial
|Options and Items||Acer Xpress VoIP phone and Acer Video Conference Manager pack|
512 MB/1 GB/2 GB DDR2 667 MHz soDIMM module
6-cell Li-ion battery pack
3-pin 65 W AC adapter
External USB floppy disk drive
|Warranty||One-year International Travelers Warranty (ITW)|
|Security||BIOS user, supervisor, HDD passwords|
Kensington lock slot
|Note||Acer recommends Windows Vista® Home Premium.|
1.Specifications vary depending on model.
2.Acer InviLink™ Nplify™, a high-throughput wireless solution, delivers superior performance and reliable connections while enabling emerging voice, video and data applications. Wi-Fi CERTIFIED®, it supports Acer SignalUp™ wireless technology and is compliant with 802.11a/b/g/Draft-N and 802.11b/g standards.
3.Actual throughput may vary depending on network conditions and environmental factors such as network traffic or overhead, building construction and access point settings.
4.Up to 1 GB of available system memory may be allocated for system resource requirements.
5.Shared system memory may be allocated to support integrated graphics, depending on system memory size and other factors. Actual system memory available to the operating system will be reduced by the amount of dedicated and shared system memory utilized by the graphics solution and resources required by the operating environment.
6.A 64-bit operating system is required to enjoy the ultimate performance of 4 GB memory.
7.Powered by CyberLink® technology.
8.1 GB is 1 billion bytes. Actual formatted capacity is less and may vary depending on preloaded materials and the operating environment. Acer eRecovery Management utilizes up to 10 GB of the stated hard disk capacity as dedicated backup space.
9.PTT countries: Asia: China, Hong Kong, Japan, Korea, Malaysia, Singapore, Taiwan. Europe: Austria, Belgium, Denmark, Finland, France, Germany, Greece, Holland, Iceland, Italy, Luxembourg, Norway, Portugal, Spain, Sweden, Switzerland. Oceania: Australia, New Zealand. N. America: Canada, USA.
10.Battery life varies depending on product specifications, computer settings, and applications or features launched, and may be reduced if Windows Aero™ is enabled. All batteries' maximum capacity diminishes with time and use.
In a continuing effort to improve the quality of our products, information in this document is subject to change without notice. Images shown are only representations of some of the configurations available for this model. Availability may vary depending on region.
As a phenomenon known to thin-film transistors (TFTs), liquid crystal displays (LCDs) commonly exhibit a small number of discoloration dots, as so-called "non-conforming pixels." This phenomenon is a limitation of TFT LCD technology, not a product defect, and as such is not covered by Acer's warranty.
2008 Acer Inc. All rights reserved. Acer, the Acer logo, and Aspire are registered trademarks of Acer Inc. Other trademarks, registered trademarks, and/or service marks, indicated or otherwise, are the property of their respective owners.
