Gateway T-1631 Garnet Red Notebook Technical Specifications

Gateway T-1631 Garnet Red Notebook Technical Specifications

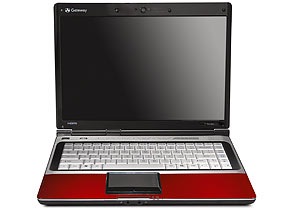

Gateway T-1631 Garnet Red Notebook

The garnet red 14.1" Gateway T-1631 Notebook, available at Circuit City, pairs the power of Genuine Windows Vista Home Premium SP1 with an AMD Turion™ 2.0GHz mobile processor to handle your multitasking needs. So sleek and lightweight you'll love to take it with you, the T-1631 keeps you connected with 802.11b/g wireless and in touch with a 1.3 megapixel webcam, and gives you increased hard-drive room. The 5-in-1 media card makes it easy to get movies and photos onto your computer—and the HDMI port makes it easy to display them on an external LCD or big-screen TV, too.

- AMD Turion™ 64 X2 Mobile Technology TL-60
- Genuine Windows Vista Home Premium (32-bit) SP1
- 3072MB 667MHz DDR2 SDRAM
- 250GB 5400rpm Serial ATA hard drive / 8MB cache
- Integrated ATI Radeon X1270 Graphics  and ATI RS690T chipset

Gateway T-1631 Garnet Red Notebook Technical Specifications:
ProcessorAMD Turion™ 64 X2 Mobile Technology TL-60 (2.0GHz, 512KBx2 L2 Cache, HyperTransport™ technology at up to 1600MHz)
Operating SystemGenuine Microsoft® Windows Vista® Home Premium (32-bit) SP1
ColorGarnet Red
Memory3072MB 667MHz DDR2 SDRAM (1-1024MB & 1-2048 MB module)5
Hard Drive250GB 5400rpm Serial ATA hard drive w/ 8MB cache3
ChassisChassis w/ Integrated ATI Radeon® X1270 Graphics with up to 256MB of HyperMemory™ and ATI RS690T chipset
Adapter65 Watt AC Adapter
Application SoftwareMicrosoft® Works 9.0, Microsoft® Money Essentials & Microsoft® Office Home and Student 2007 (60-day complimentary trial period)2
Backup MediaCyberlink Power2Go
BatteryPrimary 6 Cell Lithium Ion battery (2400mAH) w/ 1 Yr. limited battery warranty6
Digital Media Manager5-in-1 Digital Media Manager (Memory Stick™ (MS), Memory Stick™ Pro, Multi Media Card™ (MMC), Secure Digital™ (SD), xD-Picture Card)
Dimensions (Box)17" (H) x 13" (W) x 6" (D) or 432mm (H) x 330mm (W) x 153mm (D)
Dimensions (System)1.0"-1.30" (H) x 12.95" (W) x 9.75" (D) or 25-33mm (H) x 329mm (W) x 248mm (D)7
Display14.1" Ultrabright WXGA TFT Active Matrix (1280 x 800 max. resolution)
External Ports(3) USB 2.0 Ports, VGA Connector, V1.2 HDMI Connector
Finished GoodsBrushed-metal precision-touch multimedia control panel, featuring smooth-cut keys and touch-sensitive volume adjustment.
Integrated Modem56k ITU v.92 ready Fax/Modem (RJ-11 port)
Integrated Network10/100 Mbps Ethernet LAN (RJ-45 port)
KeyboardIntegrated Keyboard
Keyboard and MouseFull-Size Keyboard, Touchpad with Vertical Scroll Pointing Device and Dedicated Multimedia Panel
Memory CapacityExpandable to 4GB5
Operating System Backup MediaMicrosoft® Windows Vista® Home Premium Backup Media (32-bit)
Optical Drive8x Multi-Format Dual Layer DVD-RW with DVD-RAM
Security SoftwareNorton 360 All-in-One Security™ 2008 (60-day trial with live updates)4
Warranty1 Year Parts and Labor Limited Warranty6
Web CameraIntegrated 1.3 Megapixel Web Cam
Weights5.55 lbs. (2.51 kg) system unit only / 9.54 lbs. (4.32 kg.) box8
Wireless NetworkIntegrated Realtek 802.11 b/g Wireless Networking

  • 1 HD requires ATSC digital antenna (not included). HD signal reception depends on multiple factors.
  • 2 A 60-day complimentary subscription to Microsoft® Office 2007 is included. An Internet connection is required to start the trial.
  • 3 Accessible capacity varies. MB = 1 million bytes; GB = 1 billion bytes; TB = 1 trillion bytes.
  • 4 A 60-day complimentary subscription to the Norton offering is included. An Internet connection is required.
  • 5 The total amount of available memory on systems configured with 4GB memory and higher will be less than 4GB depending upon the actual system configuration.
  • 6 Limited warranties and service agreements apply; visit or call 800-846-2000 for a free copy. Service agreements are issued and performed by third parties. May not be available in all locations. Phone charges may apply for tech support. Accidental Damage Protection not available in all states. If a plan is purchased, an on-site service technician will be sent if necessary, following phone-based troubleshooting. Availability varies. Other conditions apply.
  • 7 Thickness varies across product; Gateway quotes measurements at thinnest point.
  • 8 Weight varies with options.
