Acer Aspire 4530 Notebook Technical Specifications

Acer Aspire 4530 Notebook Technical Specifications

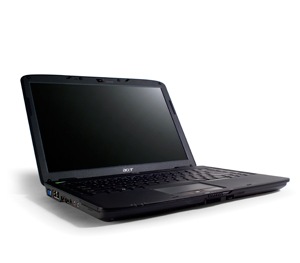

Acer Aspire 4530 Notebook The Acer® Aspire® 4530 is a complete multimedia solution for home users that combines the handsome Acer® Gemstone design, brilliant CrystalBrite® display and powerful AMD Athlon™ X2 Dual-Core Processor.

- AMD Athlon™ X2 Dual-Core Processor QL-60
- NVIDIA nForce MCP77MH, Integrated NVIDIA GeForce 9100M G graphics
- 14.1" WXGA (1280 x 800) TFT LCD with Acer CrystalBrite Technology
- Integrated variable-speed Super-Multi drive
- Windows Vista® Home Premium

Acer Aspire 4530 Notebook Technical Specifications:

Operating System Genuine. Genuine Windows Vista Home Premium
Processor AMD Athlon™ X2 Dual-Core Processor QL-60 (1MB L2 cache, 1.9GHz)
Chipset NVIDIA nForce MCP77MH
Memory 2GB (1GB installed in each of two memory slots) DDR2 667 SDRAM

User upgradeable up to 4GB (one 2GB memory card in each slot)* subject to availability of 2GB cards

*If upgrading after initial purchase, one or more of the memory cards provided with the system may have to be replaced with optional larger memory cards in order to achieve the maximum capacity.
Storage 120GB* hard disk drive

Integrated variable-speed Super-Multi drive (DVD+R, DVD-R, DVD-RAM):
-Read - Read: 24X CD-ROM, 24X CD-R, 24X CD-RW, 8X DVD-ROM, 8X DVD-R, 8X DVD+R, 6X DVD-ROM DL (double-layer), 6X DVD-R DL (double-layer), 6X DVD+R DL (double-layer), 6X DVD-RW, 6X DVD+RW, 5X DVD-RAM
-Write - 24X CD-R, 16X CD-RW, 8X DVD-R, 8X DVD+R, 4X DVD-R DL (double-layer), 4X DVD+R DL (double-layer), 6X DVD-RW, 8X DVD+RW, 5X DVD-RAM

5-in-1 card reader for optional MultiMediaCard™, Secure Digital card, Memory Stick, Memory Stick PRO™ or xD-Picture Card™

Optional external USB 1.44MB* diskette drive

*When referring to storage capacity, GB stands for one billion bytes and MB stands for one million bytes. Some utilities may indicate varying storage capacities. Total user-accessible capacity may vary depending on operating environments.
Video 14.1" WXGA (1280 x 800) TFT LCD with Acer CrystalBrite Technology

Up to 16.7 million colors

Integrated NVIDIA GeForce 9100M G graphics, Microsoft DirectX 10.0 support

Acer Video Conference featuring integrated Acer Crystal Eye webcam supporting enhanced Acer PrimaLite technology

MPEG-2/DVD acceleration

WMV9 (VC-1) and H.264 (AVC) acceleration

VGA port

Support for simultaneous display on notebook LCD and external monitor
Audio Two integrated Acer 3DSonic stereo speakers

Integrated microphone

Headphones/speaker/line-out with SPDIF support, microphone and line-in ports

Microsoft DirectSound compatibility
Interface Ports DC-in
RJ-11 modem
RJ-45 LAN
VGA
Headphones/speaker/line-out with SPDIF support
Microphone
Line-in
Three USB 2.0
Card Slots ExpressCard™/54 slot

5-in-1 card reader for optional MultiMediaCard™, Secure Digital card, Memory Stick, Memory Stick PRO™ or xD-Picture Card™
Communications Acer InviLink 802.11b/g wireless LAN, Acer SignalUp technology for enhanced antenna efficiency, WI-FI CERTIFIED™

Gigabit LAN, Wake-on-LAN ready

V.92 56Kbps* data/fax modem, PTT (postal, telegraph, telephone) certified in select countries

Acer Video Conference featuring integrated Acer Crystal Eye webcam supporting enhanced Acer PrimaLite technology

*Download speeds are limited to 53Kbps. Actual speeds may vary depending on line conditions. Uploads travel at speeds up to 33.6Kbps. Requires compatible digital sources.
Included Software Acer Arcade
Acer Empowering Technology (eRecovery, eSettings, ePower)
Acer Crystal Eye
Acer GameZone
Acer GridVista
Acer Launch Manager
Adobe Acrobat Reader
CyberLink PowerDirector™ (trial version)
McAfee Internet Security Suite (60-day trial)
Microsoft Office Home & Student 2007 (60-day trial)
NTI Media Maker™*

*OEM, not full-featured, version.
User Interface 88-key keyboard, inverted T cursor layout, embedded numeric keypad, hotkey controls, international language support, 2.5mm minimum key travel

12 function, four cursor, two Windows keys; independent US dollar and Euro sign keys

Empowering key

Web browser, e-mail, WLAN easy-launch buttons

Volume-control wheel

Touchpad
Dimensions & Weight 13.3" (339.0mm) W x 9.6" (243.0mm) D x 1.1" - 1.5" (29.0mm - 39.0mm) H

5.3 lb. (2.4kg)

Size and weight may vary depending on configuration
Power 65-watt AC adapter

Six-cell lithium ion battery: up to 3.0 hours life depending on configuration and usage (may be reduced if Windows Vista Aero is enabled)
Compliance Energy Star
Wi-Fi CERTIFIED™
Security Features User, administrator and hard drive BIOS passwords
Kensington lock slot
Limited Warranty* One-year parts and labor limited warranty* with concurrent International Traveler’s Warranty**

*For a free copy of the standard limited warranty end-users should see a reseller where Acer products are sold or write to Acer America Corporation, Warranty Department, P.O. Box 6137, Temple, TX 76503. TFT displays commonly exhibit a small number of discolored dots, so-called “nonconforming pixels.” This phenomenon is a limitation of TFT LCD technology, not a product defect and, as such, is not covered by the limited warranty or by the upgrade programs.

**Valid only in countries where Acer has an authorized repair facility. For a list of those countries go to http://global.acer.com/support/itw.htm. or call 800-816-2237. Services and response times may vary in countries outside the U.S. and Canada.
  Specifications are subject to change without notice

*** Product models and specifications may vary depending on country. Please contact your local Acer office.
