SONY PCG-C2GPS (Japan) Main Specification

SONY PCG-C2GPS (Japan) Main Specification

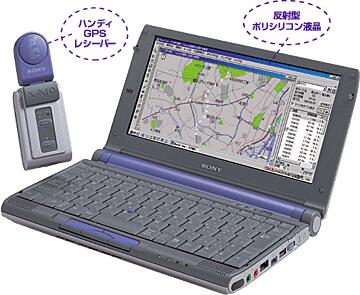

 SONY PCG-C2GPS SONY PCG-C2GPS, Japan model, Attachment handy GPS receiver of new development. Carrying about independently the memory which it builds in with single 3 shape dry cell battery drives, it can record the information of position. After that connecting to “biology” PCG-C2GPS, indicating the locus of movement on the map, it can enjoy. Of course, if it connects to PCG-C2GPS itself, as a GPS antenna function. Also navigation with drive is possible.
The main specification of ?PCG-C2GPS
Processor Mobile Pentium (R) II processor 266PE MHz (built-in primary cash 32KB)
Chip set 440ZX AGP chip set
System bus clock 66MHz
Secondary cache 256KB (built-in to processor tip/chip)
Hard disk Approximately 8.1GB (Ultra ATA) (C: Approximately 5.0GB/D: Approximately 3.1GB (when shipping) *1
Main memory Standard/maximum SDRAM 64MB (onboard)/maximum 128MB
Expansion storage slot (The number of empty slots) Private memory slot ×1(1)
Graphics Accelerator 128bit high-speed graphic accelerator NeoMagic MagicMedia256AV (NM2200)
Video memory 2.5MB (built-in to video tip/chip)
Liquid Crystal Display 8.9 Type and ultra wide XGA (1024×480 dot) correspondence, Reflected type polysilicon TFT color liquid crystal
Indicatory mode 1,024×480 (largest approximately 1,677 ten thousand color *2), 640×480 (largest approximately 1,677 ten thousand color *2), 800×600 (largest approximately 1,677 ten thousand color *2 *3), 1,024×768 (largest approximately 1,677 ten thousand color *2 *3)
Floppy disk Drive External by way of USB, Bundled 3.5 types (1.44MB/1.2MB/720KB) floppy disk drive
CD-ROM drive Selling separately PCGA-CD51 (PCGA-CD5 enabled), PC card connection
External connected terminal - Infrared ray communication port (IrDA standard conformity Ver.1.1) ×1 ?USB×1 - External display output (private mini terminal) ×1 ?i.LINK TM (IEEE1394) terminal S400 (4 pins) ×1 - The modular jack ×1 for modem - Microphone input (monaural mini- jack) ×1 - Stereo headphone output (MEGA BASS correspondence) ×1
PC card slot TypeII×1 and CardBus correspondence
Audio function Windows sound system interchangeability and built-in stereo speaker, Built-in microphone, XG corresponding hardware MIDI sound source, MEGA BASS (silent boost) function (only headphone output)
Built-in FAX/modem Maximum 56kbps*4 (V.90/K56flex TM automatic correspondence) *5 /Maximum 14.4kbps (at the time of FAX)
Keyboard/ Pointing Device Approximately 17mm pitch 86 key /Scroll functional corresponding stick type pointing device
Main accessory AC adapter (PCGA-AC5N equal item) AC cord/code, battery pack (S) Handy GPS receiver, front light/write unit, USB floppy disk drive (USB cable one somatotype) Telephone cord/code (modular cable) Display adapter (video output terminal equipped *6) Recovery CD (3 groups), “Super nationwide edition 4 for VAIO” CD-ROM
Power source AC adapter or lithium ion battery
Electric power consumption/ Energy consumption efficiency 40W/2W
Battery Operating time *7 Approximately 2.0 hour ~2.5 times (battery pack (S)), Approximately 4.0 hour ~5.5 times (battery pack (L)), Approximately 8.5 hour ~11.0 times (battery pack (LLL))
Battery Charge time *8 (Also when turning on/off) battery pack (S) approximately 1.5 hours (approximately 85%), approximately 2.5 hours (approximately 100%), Battery pack (L) approximately 3 hours (approximately 85%), approximately 5 hours (approximately 100%), Battery pack (LLL) approximately 6 hours (approximately 85%), approximately 9 hours (approximately 100%)
Warm humidity condition When operating 5~35? (temperature gradient 10°C/time below) The 20%~80% (however as for the humidity in thing, and the 35? which do not become wet with dew 65% or less)
Substance external size (Largest spine not being included) Approximately width 248mm× height 24.4mm (forward the most it is thin section. Rear section 26.7mm) ## depth 153mm
Mass Approximately 960g (battery pack (S) when loading)
Reception system Channel [oruinbiyu] /2 satellite determination possibility 16
Power source Alkaline single 3 shape dry cell battery ×1 books (at the time of USB connection, from USB bus power supply)
Electric power consumption Approximately 500mW (at the time of continuous action) approximately 150mA (at USB bus power when operating)
Electric battery operating time *9 At the time of continuous action: Approximately 3.0 hours, at the time of intermittent operation 1 minutes: Approximately 7.5 hours (at the time of alkaline dry cell use)
Memory capacity When 512KB (it records every each second, approximately 7.5 hours's amount record possibilities)
Record interval 1 second ~120 second (continual reception mode) 10 second ~3 hour (economical electrical reception mode)
Main accessory USB cable (30cm), alkaline single 3 shape dry cell batteries, installation shoe, strap
External size Approximately, width 47mm× height 121mm× depth 28mm (you install, the shoe not being included)
Mass Approximately 76g (electric battery not being included)
* It is numerical value when 11 GB was calculated at 1,000,000,000 byte. Windows (R) as for the capacity which can be recognized from the system approximately 7.61GB (C: Approximately 4.66GB/D: Approximately 2.95GB) It becomes. With the dither ring function of the *2 graphic accelerator actualization. Through *3 hypothetical picture mode, or the display adapter of attachment, when external display is used. * 456 kbps is theoretical value at the time of data reception. At the time of data transmission with respect to 33.6kbps of standard reaches maximum. Distinguishing *5 V.90 and K56flex automatically, it changes. *6 video output (only NTSC) the case where it does, it becomes resolution of 640×400 pixel, hypothetical (by the scroll all picture indication). In addition you cannot use with computer display simultaneously. *7 battery drive time at the time of economical electrical mode. There are times when it differs from the above-mentioned statement time depending upon usage condition and setting etc. In addition, the battery pack (S) with the battery pack (L) the battery pack (LLL) combined use is not possible. At the time of *8 power source on charge possibility. *9 electric battery operating time there are times when it differs from the above-mentioned statement time depending upon usage condition and setting etc.
